AWS A2.4 §14 · Figure 14.1

Stud Weld Symbol

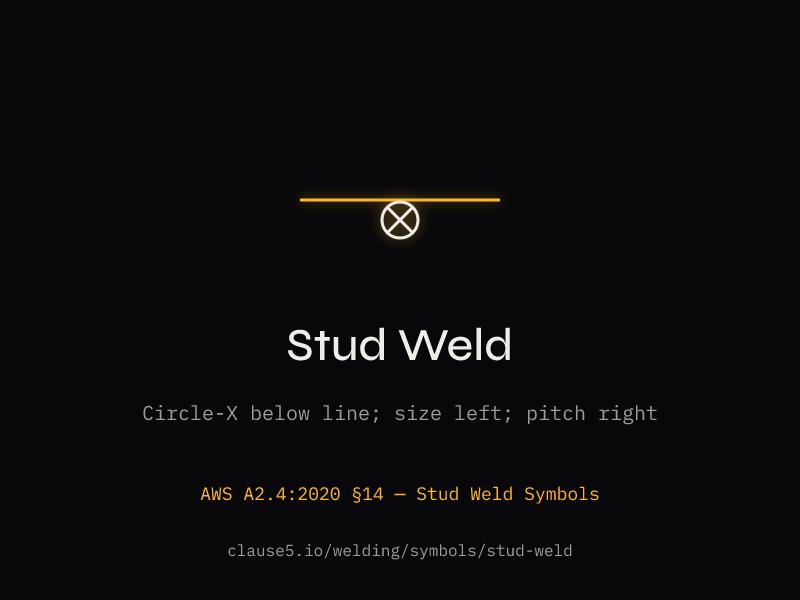

How to read a stud weld symbol — circle with X (⊗) always below the reference line. Arrow-side significance only. Stud size to the left, pitch to the right, count in parentheses below.

Stud Weld Symbol — Anatomy
always below ref line
Symbol below ref line
1/2 4 (5) size left • pitch right • count below
1/2" studs • 4" pitch • (5) count
two arrows = two rows
Multiple rows — one symbol
Key rule (A2.4 §14.1): The stud weld symbol has arrow-side significance only. The symbol is always placed below the reference line. There is no other-side or both-sides placement for stud welds.

Stud Weld Symbol Dimensions

The stud weld symbol is a circle with an X through it — visually distinct from all other weld symbols. It always appears below the reference line, and the arrow points to the surface to which the stud is welded.

Dimension Placement (A2.4 §14.2–14.5)

Stud size (left) — nominal diameter, thread pitch diameter, or weld-end cross section of the stud. Placed to the left of the symbol per §14.3.

Pitch (right) — center-to-center distance in a straight line, placed to the right of the symbol per §14.4. For configurations other than a straight line, spacing is dimensioned on the drawing.

Count (below) — number of studs in parentheses below the symbol per §14.5.

First and last location — specified on the drawing, not on the welding symbol, per §14.6.

Multiple Rows

When multiple rows of studs are required, a single welding symbol with multiple arrows is used — one arrow per row. Each arrow points to its respective surface row. See Figure 14.1(B).

Dimension Symbol Location Example Standard Reference
Stud size Left of symbol 1/2 (for 1/2-inch stud) A2.4 §14.3
Pitch (c-to-c) Right of symbol 4 (for 4-inch pitch) A2.4 §14.4
Count Below symbol, in parens (6) for six studs A2.4 §14.5
First/last location On drawing (not on symbol) Dimension lines or coordinates A2.4 §14.6
Multiple rows One symbol, multiple arrows Two arrows for two rows A2.4 Figure 14.1(B)

What Is a Stud Weld?

A stud weld fuses a metal fastener (stud, pin, or bolt) to a base metal surface in a single operation. The stud is pressed against the base plate with a welding gun, an arc is drawn in the annular gap, and the stud plunges into the molten pool to complete the weld. The result is a full-strength fusion bond around the base of the stud.

Common applications include shear connectors on steel beams (composite construction), lifting inserts in precast concrete, earthing/grounding studs, and threaded fastener attachment without drilling.

Process Designation

The stud welding process is designated SW (stud welding) in the AWS process abbreviation system. When the process is not obvious from the symbol, it may be noted in the tail of the welding symbol.

Composite construction note: In structural steel composite beams, shear studs are the most common stud weld application. AISC and AWS D1.1 have specific requirements for shear stud size, spacing, and inspection criteria. The welding symbol alone communicates size and pattern; structural requirements come from the design documents.

Stud Weld Symbol FAQs

What does the stud weld symbol look like?
The stud weld symbol is a circle with an X through it (⊗). It is always placed below the reference line because stud welds have arrow-side significance only per AWS A2.4:2020 §14.1. The arrow points to the surface to which the stud is to be welded. No other-side placement exists for the stud weld symbol.
Where do size, spacing, and count go on a stud weld symbol?
Per AWS A2.4:2020 §14.3–14.5: stud size (nominal diameter) is placed to the LEFT of the symbol; pitch (center-to-center spacing) is placed to the RIGHT; and the number of studs is placed in parentheses BELOW the symbol. For example, 1/2 ⊗ 4 / (6) means 1/2-inch studs, 4-inch pitch, 6 studs total.
Why does the stud weld symbol have no other-side significance?
A stud weld involves only one joint surface — the base plate face the stud attaches to. There is no second member prepared. Therefore, other-side placement has no physical meaning. The symbol always goes below the reference line per §14.1, and the arrow identifies which surface receives the studs.
How is the location of the first and last stud weld specified?
Per AWS A2.4:2020 §14.6, the location of the first and last stud in each single line is specified on the drawing, not on the welding symbol itself. This is typically done with dimension lines or coordinate callouts on the plan view. Multiple rows use a single welding symbol with multiple arrows, one per row, as shown in Figure 14.1(B).
